Dual Fiber 16 Channels LGX Box C41-C56 DWDM


The 4-Channel DWDM MUX DEMUX is a passive device designed to enable high-capacity and flexible point-to-point fiber transmission.


Maximized Wavelength Range

Our 16ch DWDM MUX DEMUX LGX Box operates on wavelengths from C41 to C56 (1544.53nm~1532.68nnm).

Built in accordance with the ITU-T G.694.1 100GHZ grid, this device leverages the capacity of the C-band range to the maximum.

Plus, we offer customization services to support other wavelengths based on your needs.

Fully Passive DWDM Device

Our product is a fully passive DWDM device that supports low insertion loss with wavelength ports <3.5dB. This ensures efficient and reliable data transmission, enhancing your network's performance.

Long-Distance Transmission Support

In conjunction with DWDM amplifiers and a DCM device, our 16ch DWDM system supports long-distance transmission.

This makes our solution ideal for expansive networks that span across large geographical areas.

Future-Proof Your Network with the Expansion Port

Equipped with an Expansion Port, our device facilitates future bandwidth increases.

You can augment network capacity by connecting it to the line port of another DWDM MUX/DEMUX with different wavelengths, eliminating the need for installing or leasing additional fibers.

Versatile Business Applications

Our 16ch DWDM MUX DEMUX LGX Box supports 16 different business applications in two optical fibers for point-to-point transmission.

Regardless of your industry - Broadcast and TV, IDC, finance, government, cloud, or massive data - our device ensures seamless operations and efficient data transmission.

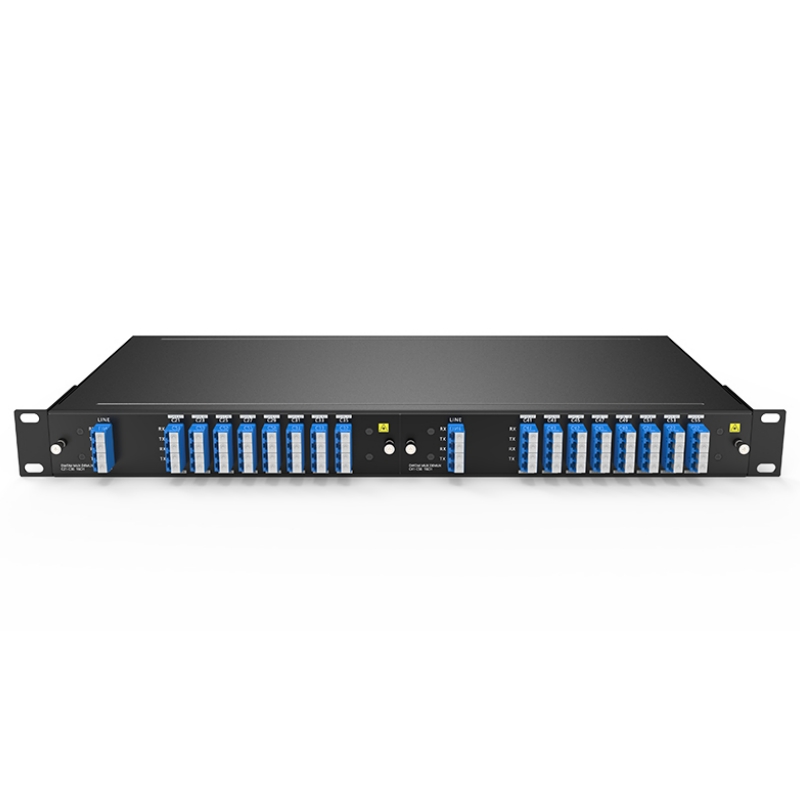

Product Panel

Technical Data


Info & Guides


  1. 16-channel DWDM MUX DEMUX
  2. Wavelength range from C41 to C56 (1544.53nm~1532.68nm)
  3. ITU-T G.694.1 100GHZ grid compliant
  4. Totally passive DWDM device
  5. Low insertion loss: <3.5dB for wavelength ports
  6. Expansion Port for future bandwidth increase
  7. Suitable for point-to-point transmission


  1. Broadcast and TV
  2. IDC (Internet Data Centers)
  3. Finance
  4. Government
  5. Cloud services
  6. Massive data management
