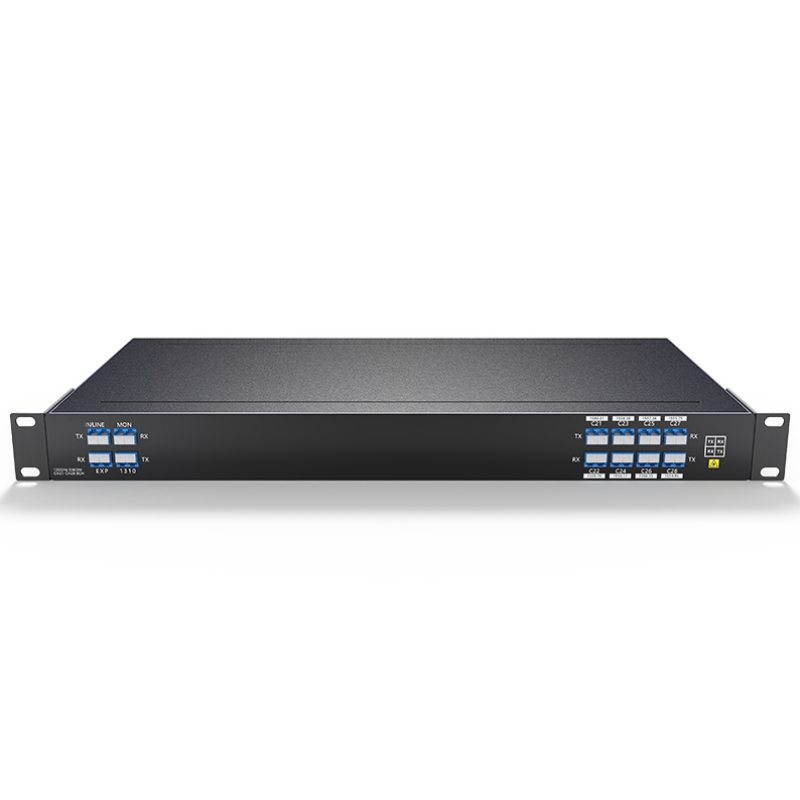

Dual Fiber 8 Channels 1U Rack C21-C28 DWDM MUX


Fibeye's Dual Fiber 8-Channel DWDM MUX/DEMUX operating on wavelengths from C21 to C28 (1560.61nm~1554.94nnm). Leverage the ITU-T G.694.1 100GHZ grid to maximize the capacity of the C-band range.


Unlock the potential of your network with Fibeye's Dual Fiber 8-Channel DWDM MUX/DEMUX.

This device operates on wavelengths from C21 to C28 (1560.61nm~1554.94 nm.

Leverage the ITU-T G.694.1 100GHZ grid to maximize the capacity of the C-band range.

Plus, we offer customization options to meet your specific wavelength needs.

8-Channel DWDM with 1310nm Port: Passive & Efficient

Our 8-channel DWDM with a 1310nm port is a completely passive solution for your network.

It supports low insertion loss, with wavelength ports under 2.4dB; 1310nm port under 0.8dB, which enhances efficiency.

When combined with DWDM amplifiers and DCM devices, our system supports long-distance transmission with remarkable ease.

Product Panel Features

  • 1310nm Port: Designed to support a range of traffic, including 1G LX/SX, 10G LR, 40G ER4/LR4, and 100G LR/ER4/LR4/ZR4, it's perfect for managing your existing legacy traffic.
  • Monitor Port: Easily keep track of your network link or power, enabling easy troubleshooting without affecting network traffic.
  • Expansion Port: Designed for future bandwidth increases, you can connect this port to the line port of another DWDM MUX/DEMUX supporting different wavelengths, eliminating the need for additional fiber installations or leases.

Line Link: 8 Channels

Our 8-channel DWDM MUX/DEMUX with a 1310nm Port supports different business applications. Across two optical fibers for efficient point-to-point transmission.

Industry Applications

Whether you're in broadcasting, finance, government, cloud services or dealing with massive data, our device is the perfect fit.

It's designed to efficiently manage and transmit data over optical fibers, making it an essential asset in any industry.

Order Fibeye's Dual Fiber 8-Channel DWDM MUX/DEMUX and future-proof your network.

With our commitment to quality and flexibility, we're not just providing a product, we're delivering a lasting solution for your connectivity needs.


Technical Data


Info & Guides


  • Wavelength range: C21 to C28 (1560.61nm~1554.94nm)
  • ITU-T G.694.1 100GHZ grid compliant
  • Low insertion loss: Wavelength ports <2.4dB, 1310nm port <0.8dB
  • 1310nm port supports multiple protocols
  • Monitor Port for network link monitoring or power monitoring
  • Expansion Port for future bandwidth increasing


  • Broadcast and TV
  • IDC
  • Finance
  • Government
  • Cloud
  • Massive data
